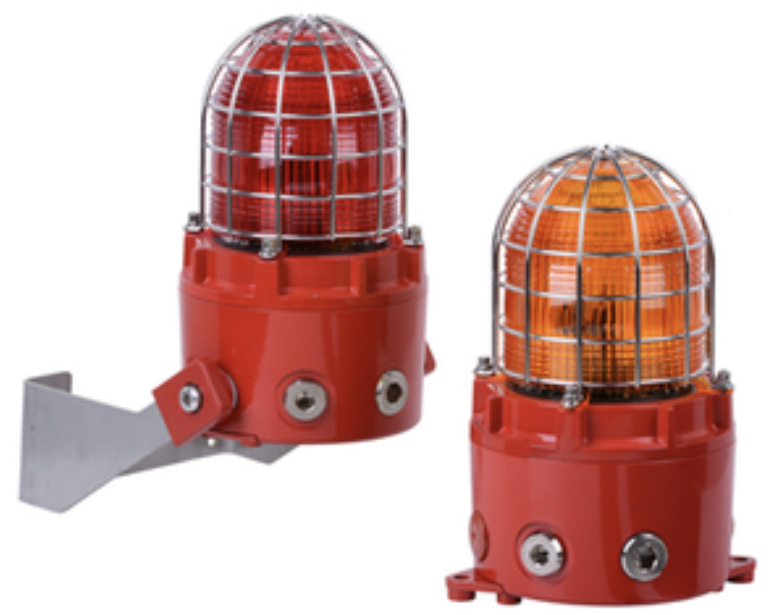

Explosion-proof xenon strobe light

The explosion-proof Ex d xenon strobe light offers impressive performance and maximum safety in demanding industrial environments. With an energy output of 5 joules, it generates an intense xenon flash for reliable visual signalling.

The robust, corrosion-resistant housing made of LM6 aluminium (marine grade) with an IP66 rating is suitable for use in Class I/II Division 1 and Zones 1, 2, 21 and 22 hazardous areas. The luminaire is approved for fire alarm applications in accordance with EN54-23, UL1638 and CAN/ULC S526, as well as being CPR-compliant (EU & UK) and UL Marine certified.

A field-replaceable, UV-stable polycarbonate colour filter optimises the strobe performance. Four selectable strobe rates (1 Hz, 1.3 Hz, 1.5 Hz and double flash), as well as automatic synchronisation in multi-unit installations, enable flexible applications.

The housing features a threaded flame path and four cable entries. Various mounting options, such as surface-mounted, suspended or bracket-mounted installation, ensure easy installation. A protective grille made of A4 (316) stainless steel is fitted as standard.

E2S Warning Signals Zone 1 Zone 2 Zone 21 Zone 22

860.00 € Exclusive of taxes

ATEX Zone - Zone 1 (2G)
Voltage
- 24 VDC
- 230 VAC
Lens colour
- yellow
- red
- blue
- green
- Amber
- Magenta
- clear
Material of the blind plugs
- Brass
- nickel-plated brass + 10.01 €
- stainless steel + 24.98 €

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Documents

Datasheet Xenon Blitzleuchte.pdf Gebrauchsanweisung Xenon Blitzleuchte.pdf ATEX Certificate Xenon Blitzleuchte.pdf Manual Xenon Blitzleuchte.pdf Manual Xenon Blitzleuchte.pdf User Manual Xenon Blitzleuchte.pdf Declaration of Conformity Xenon Blitzleuchte.pdf IECEx Certificate Xenon Blitzleuchte.pdf
