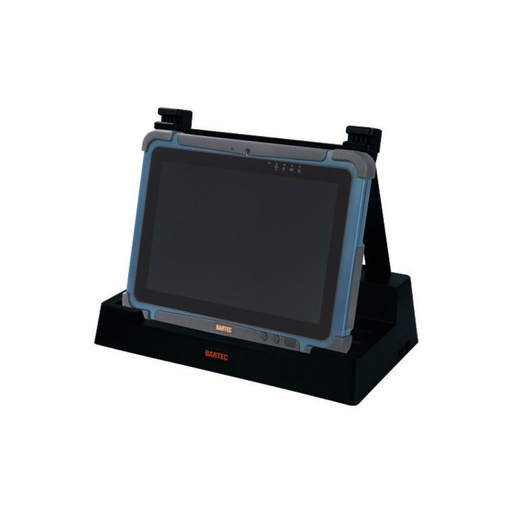

The docking station is suitable for Agile, Agile X and Agile X IS.

Technical data
- Input voltage: DC 19 V
- Charging with battery inserted
- Interfaces:
4 x USB 2.0
1 x RS232
1 x Ethernet 10/100 Mbit/s
1 x HDMI
1 x charging port

Included in the scope of delivery:
- Docking station
- Mounting bracket
- Screws for mounting bracket (6 pieces)
- Fixing elements (2 pieces)
- Inserts for Agile X (2 pieces)
- Screws for insert (2 pieces)
- Rubber feet (4 pieces)
- Power supply unit
- Power cable (EU + US)
- Quick guide (DE + EN)

The country-specific AC power cable in the EU version.

The country-specific AC power cable in the UK version. The required country-specific cable can be purchased in the respective country.

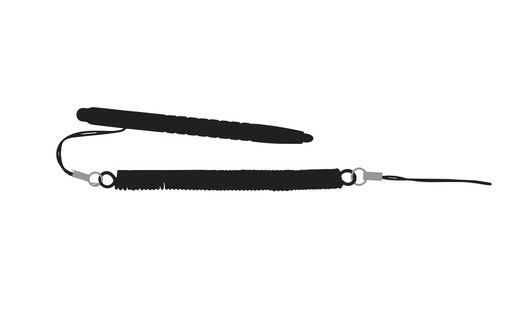

The dual input pen is suitable for capacitive touchscreens and is equipped with a coiled cable.

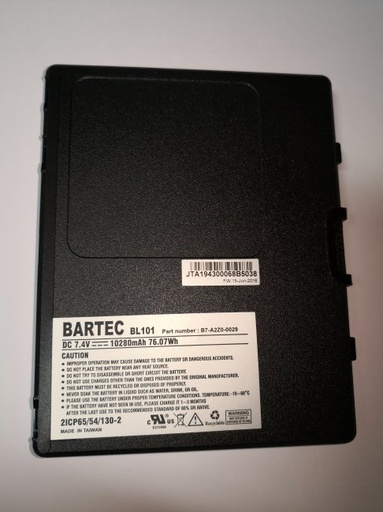

The 7.4 V/10280 mAh (76.07 Wh) lithium polymer battery may only be replaced outside potentially explosive atmospheres.

The country-specific AC power cable in the US version. The required country-specific cable can be purchased in the respective country.

The country-specific AC power cable in the Australia version. The required country-specific cable can be purchased in the respective country.

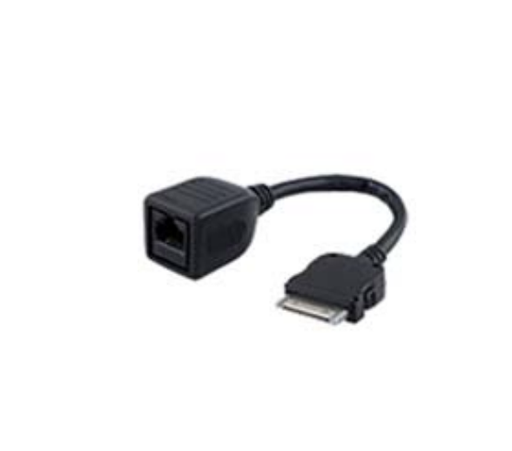

The adapter cable is for LAN from 30-pin extension connection.
Plug RJ45 socket
Type: 03-9919-0022
Compatible Tablet PC: Agile and Agile X

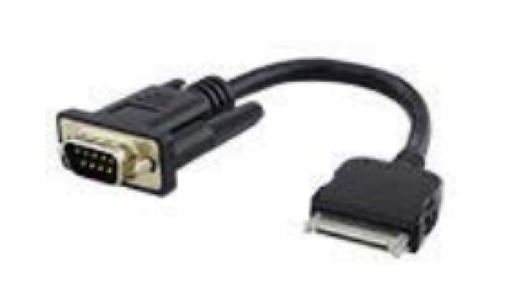

The adapter cable is for RS232 with 30-pin extension connection.

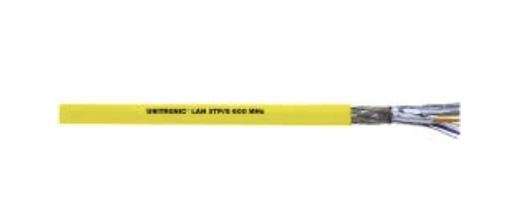

The STP LAN cable has an outer diameter of 18 mm.
Note: Additional cable glands are required for the reinforcement.

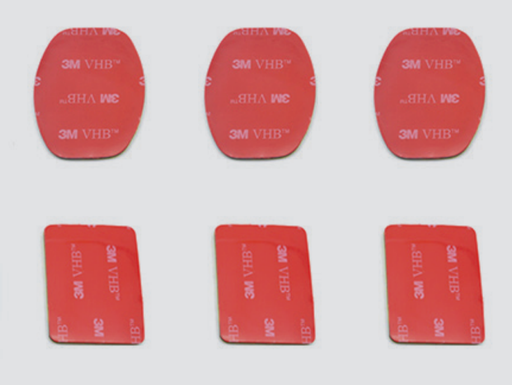

The scope of delivery includes 6 replacement adhesive pads, which are flat and curved.

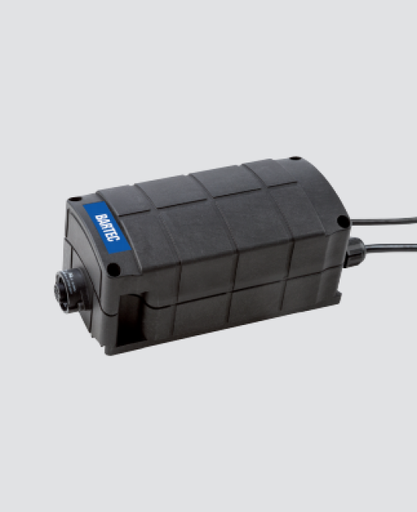

The universal supply module is wired and is used for the intrinsically safe supply of the scanner.
Interfaces (Ex e version):
RS232, RS422, RS485, USB

Important information: USB only works as SPP (Serial Port Profile), HID (Human Interface Device) is not supported.

The universal supply module is wired and is for Bluetooth wireless connection to the hand-held scanner.
Interfaces (Ex e version):
RS232, RS422, RS485, USB

Important information: USB only works as SPP (Serial Port Profile), HID (Human Interface Device) is not supported.

The EVAC pendant luminaire, designed for potentially explosive atmospheres in zones 1, 2, 21 and 22, is characterized by its robust design, high IP protection rating and wide ambient temperature range. This is precisely why this luminaire is used in climatic regions where very harsh environmental conditions prevail. Typical areas of application include offshore oil and gas production facilities or in the industrial and chemical sectors, but also wherever combustible dusts may occur. The luminaire is designed with “Ex d” type of protection and can be used with a wide range of light sources thanks to its different sizes. Thanks to the versatility of high-pressure discharge lamps as well as conventional incandescent/halogen or mixed light lamps, this luminaire offers the ideal solution for almost any application.

The EVAC pendant luminaire is suitable for wall/ceiling/pendant or pole mounting via a bracket. Various outdoor reflectors and an additional protective cage are available as accessories.

Luminaire: 96 W
Cable entry: 1 x 3/4”
Blanking plug; 1x.
Bulb included in scope of delivery.

ATEX:
Ex II 2G Ex d IIC T6÷T2 Gb
Ex II 2D Ex tb IIIC T85°C - T225°C Db IP66

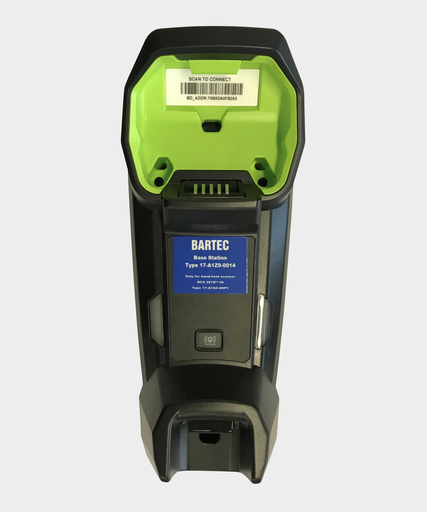

The universal supply module is wired and is used for the Bluetooth wireless connection to the hand-held scanner.
Interfaces (Ex e version):
RS232, RS422, RS485, USB

Important information: USB only works as SPP (Serial Port Profile), HID (Human Interface Device) is not supported.

RS232 (5V power supply)
(e.g. for connection to BARTEC Polaris HMI).

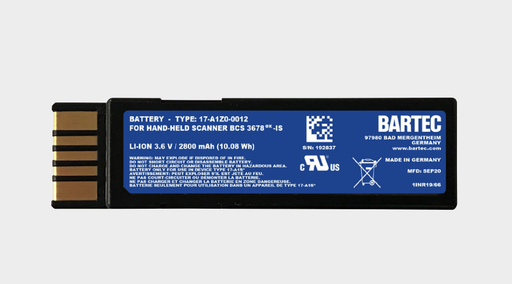

The 17-A1Z0-0012 rechargeable battery is approved in combination with the BCS 3678ex IS hand-held scanner. Lithium-ion battery 3.6 V/2800 mAh (10.08 Wh).
The battery may only be changed and charged outside potentially explosive atmospheres.

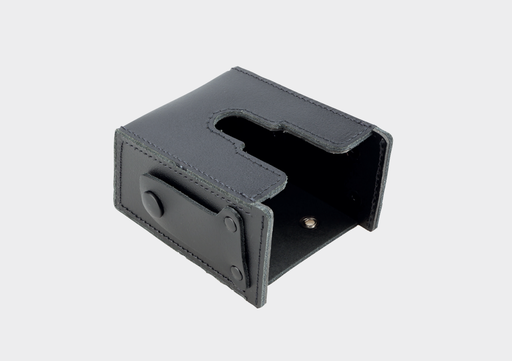

The leather holster is made of robust, industrial quality leather and can be attached to a belt or wall. color: black

The input voltage is DC 12 V (50 W) and charging is indicated by LED and sound.
A power supply unit with DC connection cable and an AC power cable are also required, as these are not included in the scope of delivery.

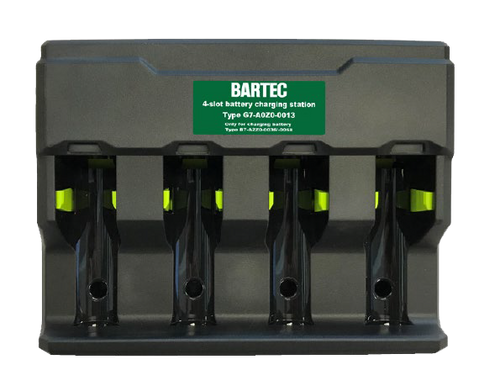

The 4-way battery charging station is only suitable for use outside potentially explosive atmospheres.
