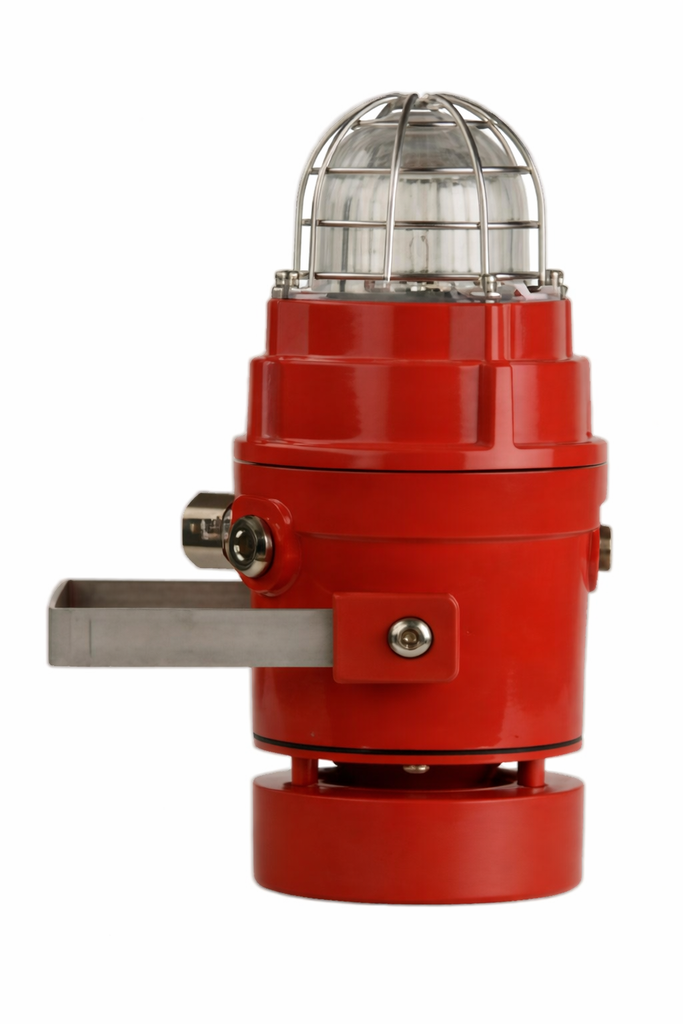

Explosion-proof combination unit: alarm horn and flashing light

The explosion-proof combined alarm horn and strobe light unit combines powerful acoustic and visual signalling in a compact, robust system. The D1xC1X05R is equipped with a 5-joule xenon strobe light and an omnidirectional horn, achieving a sound pressure level of up to 110 dB(A) for reliable warning signals in demanding industrial environments.

With 64 selectable alarm tones and 4 remotely controlled alarm levels or channels, the device can be flexibly adapted to a variety of applications. The integrated Class D amplification ensures high acoustic output whilst maintaining efficient energy consumption. Automatic synchronisation enables the simultaneous operation of multiple signal transmitters and flashing lights within a single system.

The robust, marine-grade aluminium housing (Type 4/4X, IP66/67) ensures optimum protection against corrosion, dust and water. The pressure-tight screw connection, multiple cable entries and the double, plug-in connector make installation and maintenance considerably easier.

The combined unit is certified and approved worldwide for use in Class I & II Division 1 and Zones 1, 2, 20, 21 and 22 (ATEX & IECEx). The 24 Vdc version also meets the requirements for public and private fire alarm applications in accordance with UL464, UL1638, and CAN/ULC-S525 and S526. Furthermore, the device is SIL1 & SIL2 compliant in accordance with IEC61508 (2010).

E2S Warning Signals Zone 1 Zone 2 Zone 21 Zone 22

1,686.17 € Exclusive of taxes

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Documents

ATEX Certificate Alarmhupe & Blitzleuchte.pdf Bedienungsanleitung Alarmhupe & Blitzleuchte.pdf Datasheet Alarmhupe & Blitzleuchte.pdf Declaration of Conformity Alarmhupe & Blitzleuchte.pdf IECEx Certificate Alarmhupe & Blitzleuchte.pdf Instruction Manual Alarmhupe & Blitzleuchte.pdf User Manual Alarmhupe & Blitzleuchte.pdf

Follow us

Explosion-proof combination unit: alarm horn and flashing light

ATEX Zone - Zone 1 (2G)

Lens colour

Material of the blind plugs

Voltage

Zubehör

Alternative Produkte
