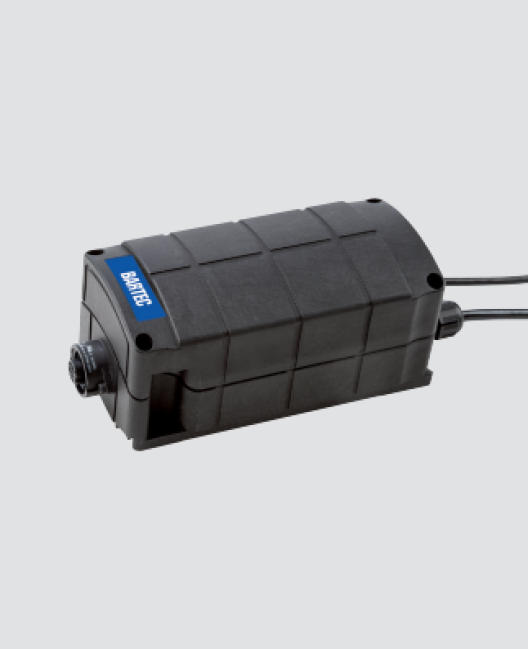

Universal supply module wired for hand-held scanner BCS 3678ex IS

Universal supply module wired for BCS 3678ex IS

Product description

Wired supply module for intrinsically safe connection of the BCS 3678ex IS hand-held scanner to the host system. The connection to the host is made via cable, to the scanner via Bluetooth radio - ideal for stationary workstations with wireless scanning.

Radio & connection

Bluetooth wireless connection to the hand-held scanner

Wired host connection

Interfaces (Ex e version)

RS232

RS422

RS485

USB

Special notes

USB only supports SPP (Serial Port Profile); HID (Human Interface Device) is not supported.

RS232 with 5 V power supply available (e.g. for connection to BARTEC POLARIS HMI).
