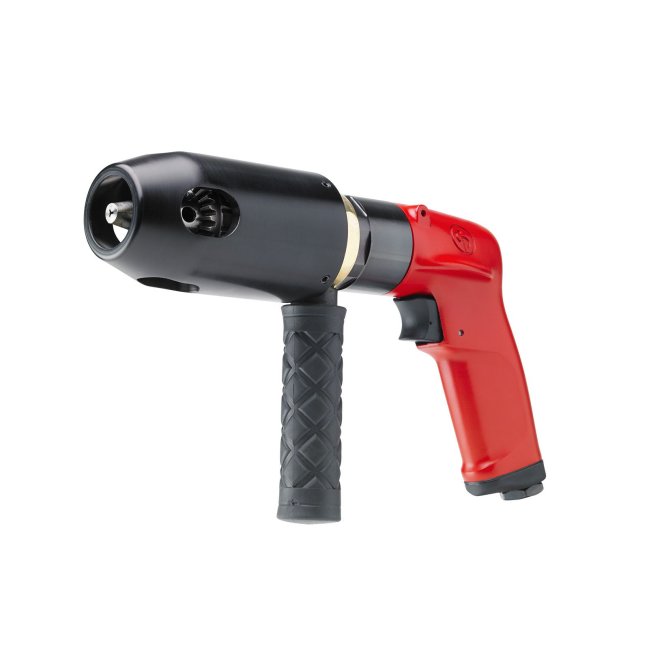

The CP1117P32 ATEX pneumatic drill has been specially developed for use in potentially explosive atmospheres and offers the highest levels of safety, precision and durability. With 750 W pneumatic power, it is ideal for demanding tasks such as drilling, thread cutting and reaming in industrial environments.
The high-quality Jacob’s industrial chuck (10 mm) guarantees precise concentricity and a secure grip for standard drill bits. Thanks to the side handle, the tool can be guided in a stable and controlled manner – a clear advantage for tasks that require both strength and precision.
With its reversible barrel (R/L), the CP1117P32 offers maximum flexibility and is ideally suited to both clockwise and anti-clockwise applications. The ergonomic pistol grip ensures comfortable handling during continuous operation, whilst the pneumatic drive guarantees reliable performance without the need for an electrical power supply (no 230 V).
Advantages at a glance:
ATEX-certified – safe for use in potentially explosive atmospheres
Jacob’s industrial feed screw (10 mm) – precise concentricity & secure grip
Additional side handle for controlled operation
750 W pneumatic power – robust & durable
Reversible (R/L) – versatile for a range of applications
Ergonomic design – comfortable even during continuous use
Pneumatically operated – low-maintenance & reliable
Technical data
Chuck: Jacob's, 10 mm (sometimes 13 mm depending on variant)
Power: 750 W
Reversing bar (R/L)
Air consumption: 834 l/min (under load) | 16.1 l/s (free)
Air inlet: 1/4″ NPTF | min. hose diameter: 10 mm
Noise level: 84 dB(A) (LpA) | Sound power: 95 dB(A)
Vibration: 2.6 m/s²
Dimensions: 268.26 × 61.8 × 150.87 mm
Weight: 2.25 kg
