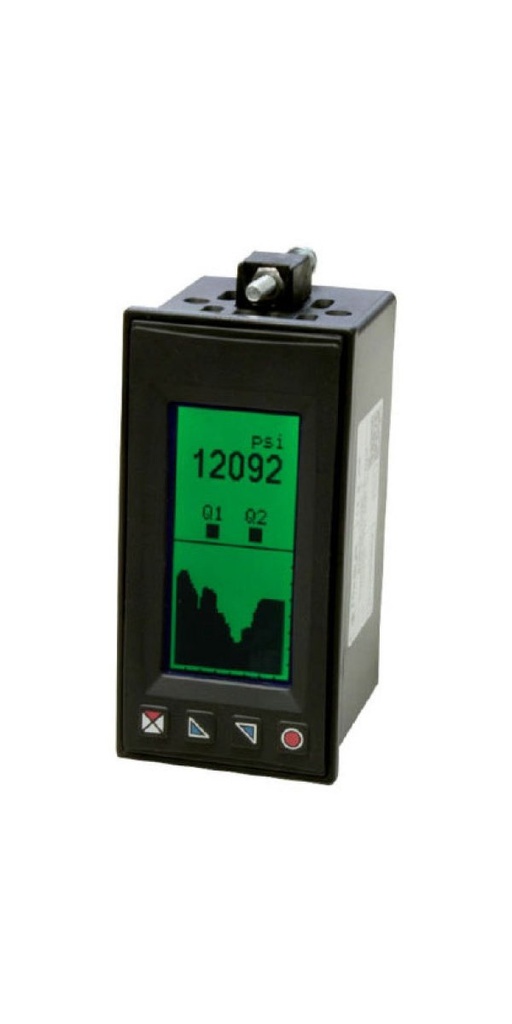

Display for electronic level transmitter

Display for electronic level sensor 1/8 DIN 96 x 48

Use and safety

The display is only to be used in safe areas and is intended for panel mounting. When connecting to an ATEX immersion level transmitter, an active barrier with intrinsic safety and EX protection is mandatory.

Display and operation

A silicone membrane keypad with IP54 protection is available on the front. The display combines four digits with a 128 x 64 monochrome LCD with backlighting for clear readability.

Functions

Integrated tracker function for tracking measured values. Suitable for displaying and monitoring fill levels in industrial applications.

Format and installation

Housing size 96 x 48 millimeters in 1/8 DIN format. Compact design for flush panel mounting.

Key technical data

Size 96 x 48 millimeters 1/8 DIN

Front IP54 mit Silicon membrane temperature

Four digits and 128 x 64 LCD with backlight

Operation in the safe area

Connection to ATEX immersion level transmitter only via active intrinsically safe barrier
